ENGI-3440 - Files and Utilities Repository

Maintained by: Prof. Ricardo Bravo - ricbrav@gmail.com

Property Tables for Heat Transfer*

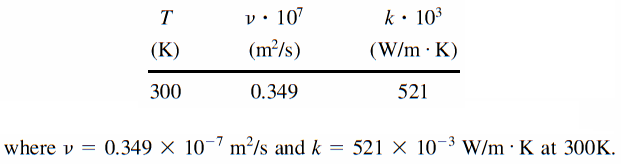

The convention used to present numerical values in heat transfer property tables is illustrated by this example:

• Table HT-1 - Thermophysical Properties of Selected Technical Materials
• Table HT-2 - Thermophysical Properties of Selected Common Materials
• Table HT-3 - Thermophysical Properties of Gases at Atmospheric Pressure
• Table HT-4 - Thermophysical Properties of Saturated Liquids
• Table HT-5 - Thermophysical Properties of Saturated Water

Property Tables for Thermodynamics*

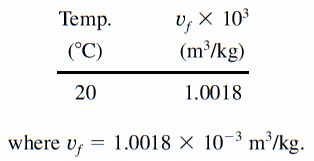

The convention used to present numerical values of specific volume of liquids in the international system (SI) tables for thermodynamics is illustrated by this example:

• Table T-1 - Atomic or Molecular Weights and Critical Properties of Selected Elements and Compounds - International System / English System
• Table T-2 - Properties of Saturated Water (Liquid-Vapor): Temperature Table  - International System / English System
• Table T-3 - Properties of Saturated Water (Liquid-Vapor): Pressure  - International System / English System
• Table T-4 - Properties of Superheated Water Vapor  - International System / English System
• Table T-5 - Properties of Compressed Liquid Water  - International System / English System
• Table T-6 - Properties of Saturated Refrigerant 134a (Liquid-Vapor): Temperature Table  - International System / English System
• Table T-7 - Properties of Saturated Refrigerant 134a (Liquid-Vapor): Pressure Table  - International System / English System
• Table T-8 - Properties of Superheated Refrigerant 134a Vapor  - International System / English System
• Table T-9 - Ideal Gas Properties of Air  - International System / English System
• Table T-10 - Ideal Gas Specific Heats of Some Common Gases  - International System / English System
• Table T-11 - Ideal Gas Properties of Selected Gases  - International System / English System

*Source of this content:

Moran M, Shapiro H, Munson B, DeWitt D (2003) Introduction to Thermal Systems Engineering:Thermodynamics, Fluid Mechanics, and Heat Transfer. 1st ed. John Wiley & Sons, Inc.

Tables:

Property Tables for Heat Transfer:

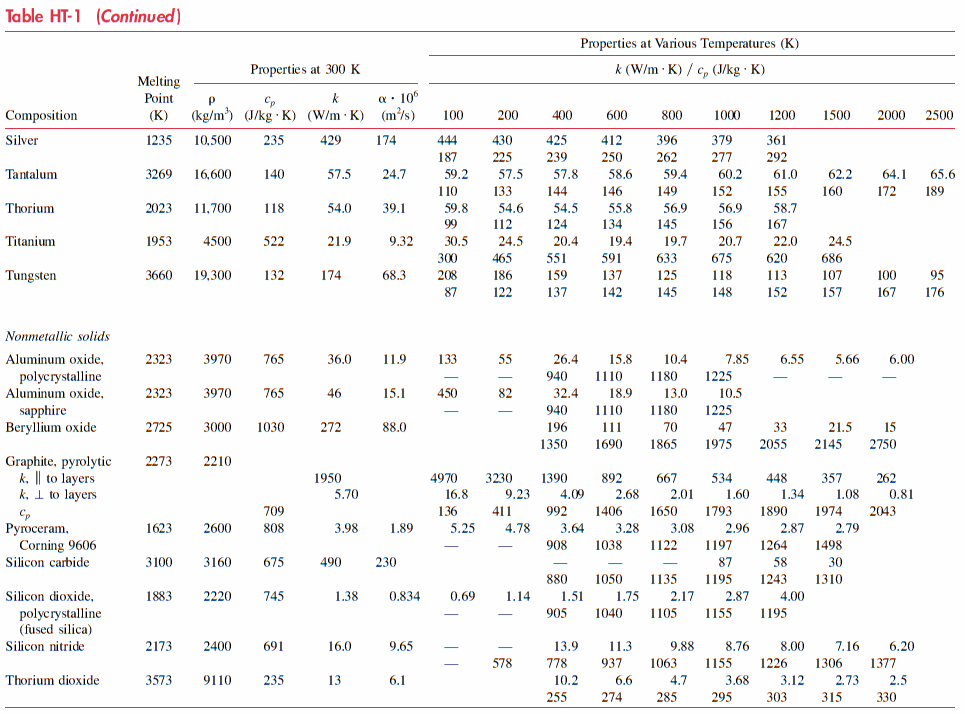

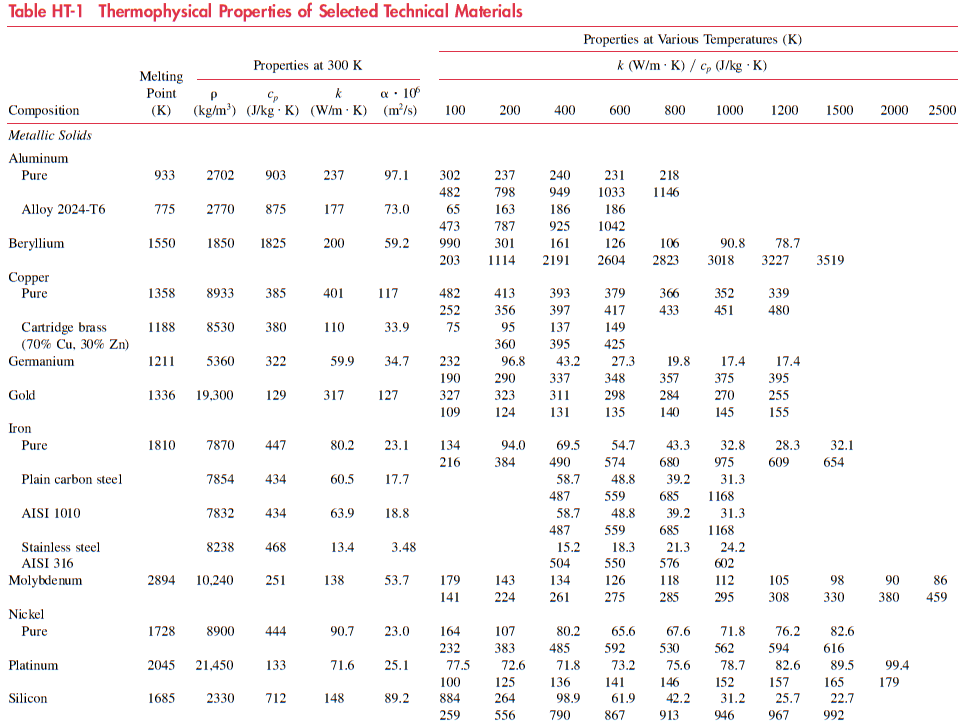

Table HT-1 Thermophysical Properties of Selected Technical Materials - Go to heat transfer tables / Go to top

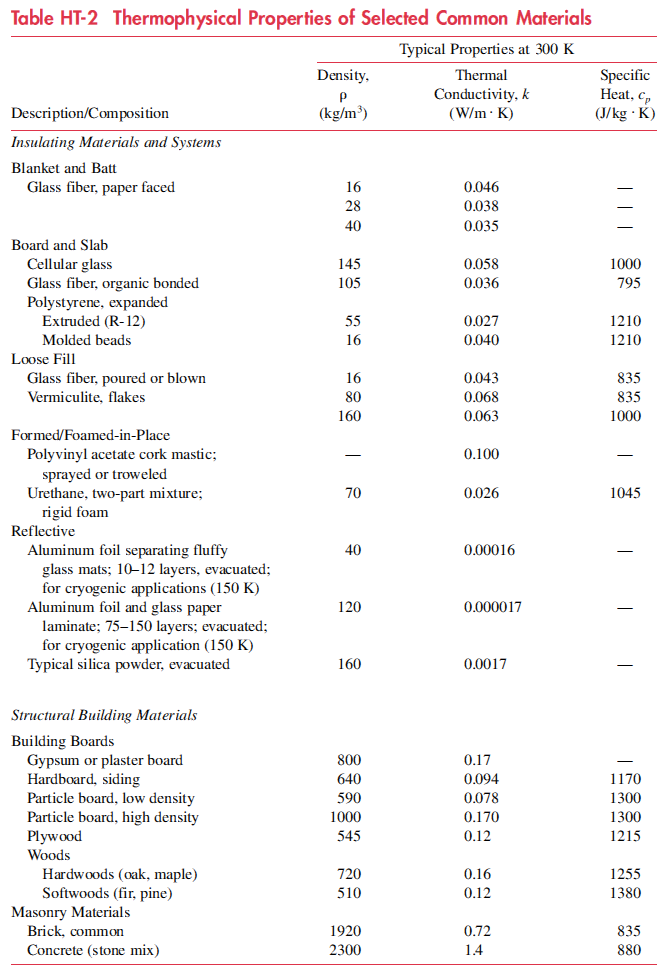

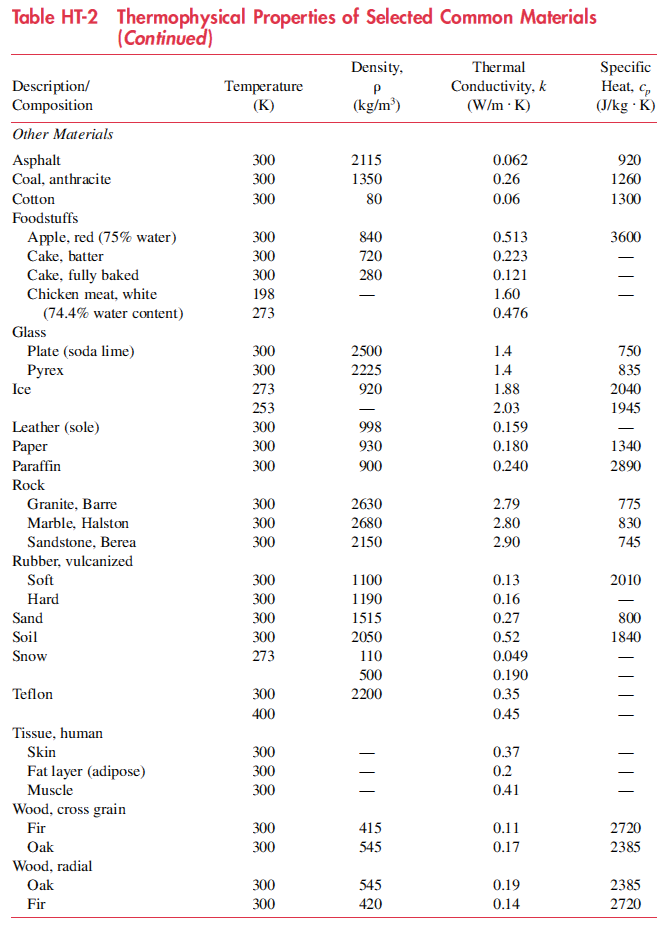

Table HT-2 Thermophysical Properties of Selected Common Materials - Go to heat transfer tables / Go to top

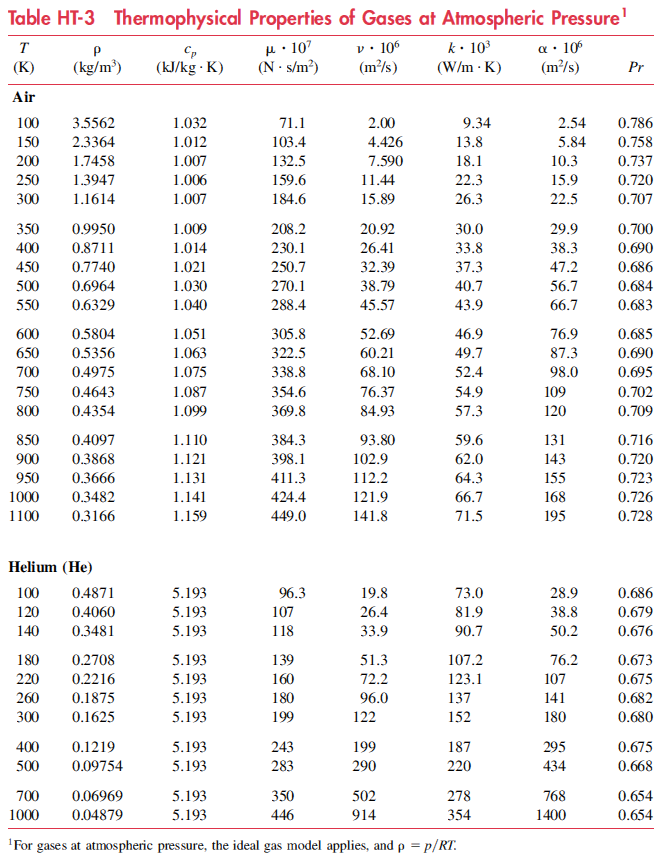

Table HT-3 Thermophysical Properties of Gases at Atmospheric Pressure - Go to heat transfer tables / Go to top

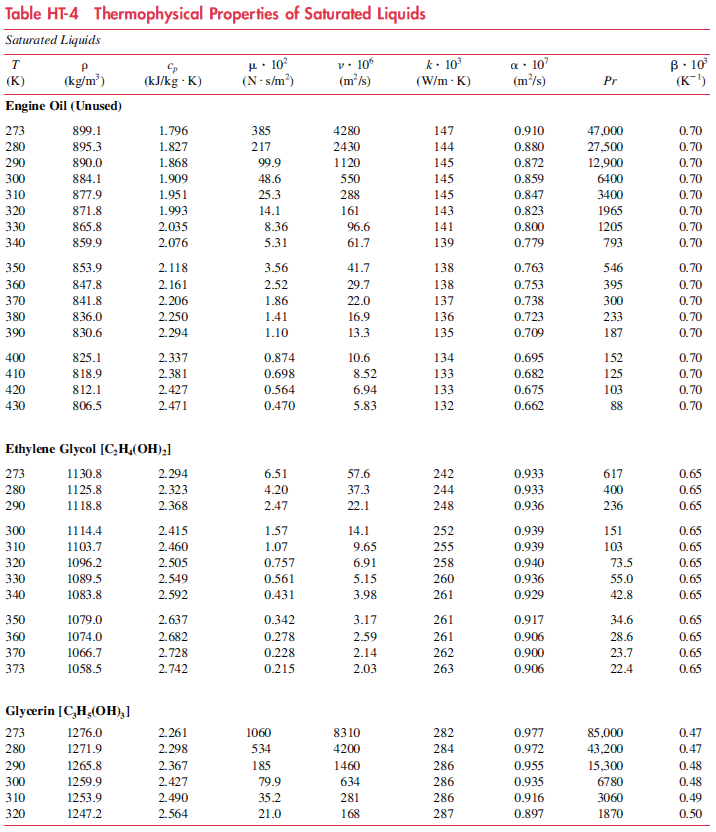

Table HT-4 Thermophysical Properties of Saturated Liquids - Go to heat transfer tables / Go to top

Table HT-5 Thermophysical Properties of Saturated Water - Go to heat transfer tables / Go to top

Property Tables for Thermodynamics:

Table T-1 - Atomic or Molecular Weights and Critical Properties of Selected Elements and Compounds

International System / English System - Go to thermodynamics tables / Go to top

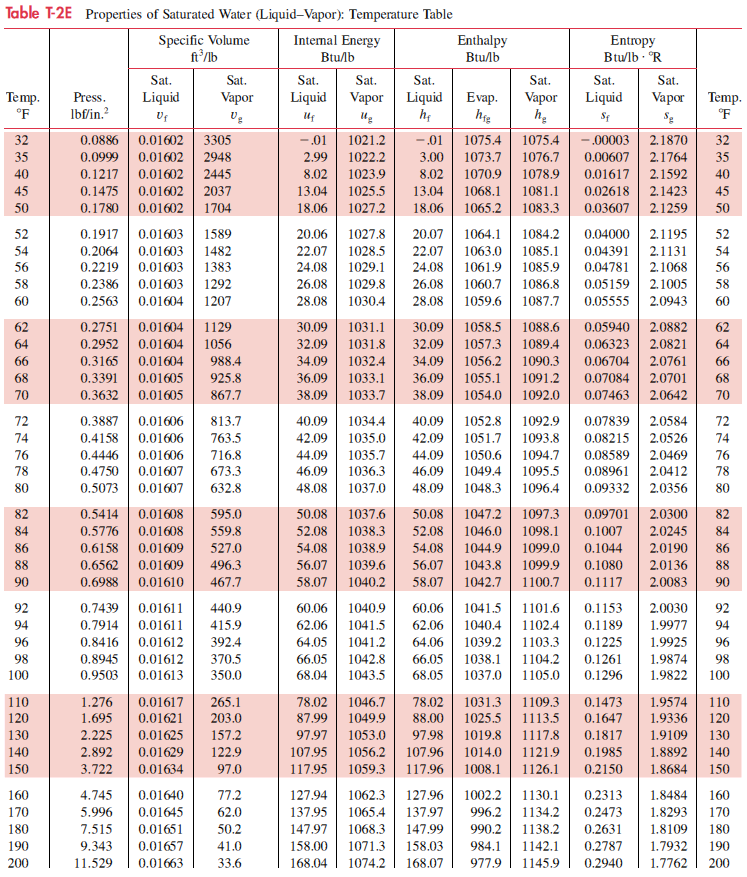

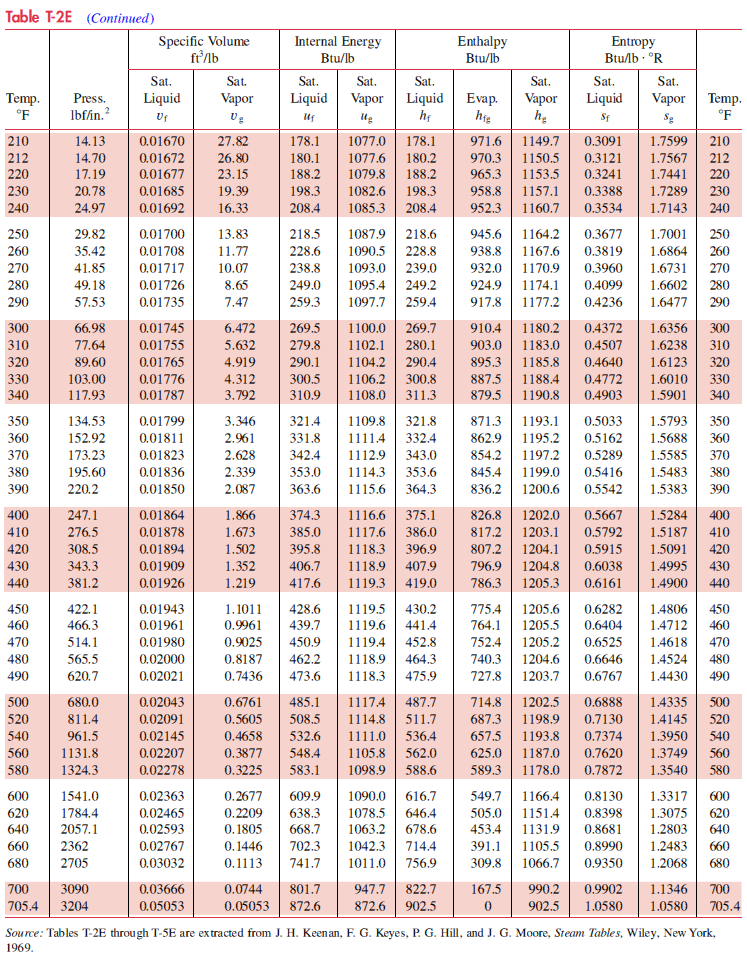

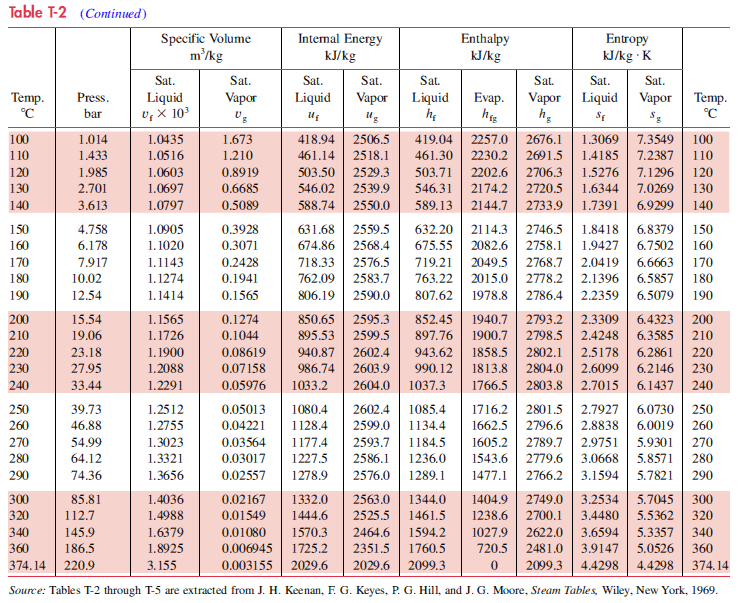

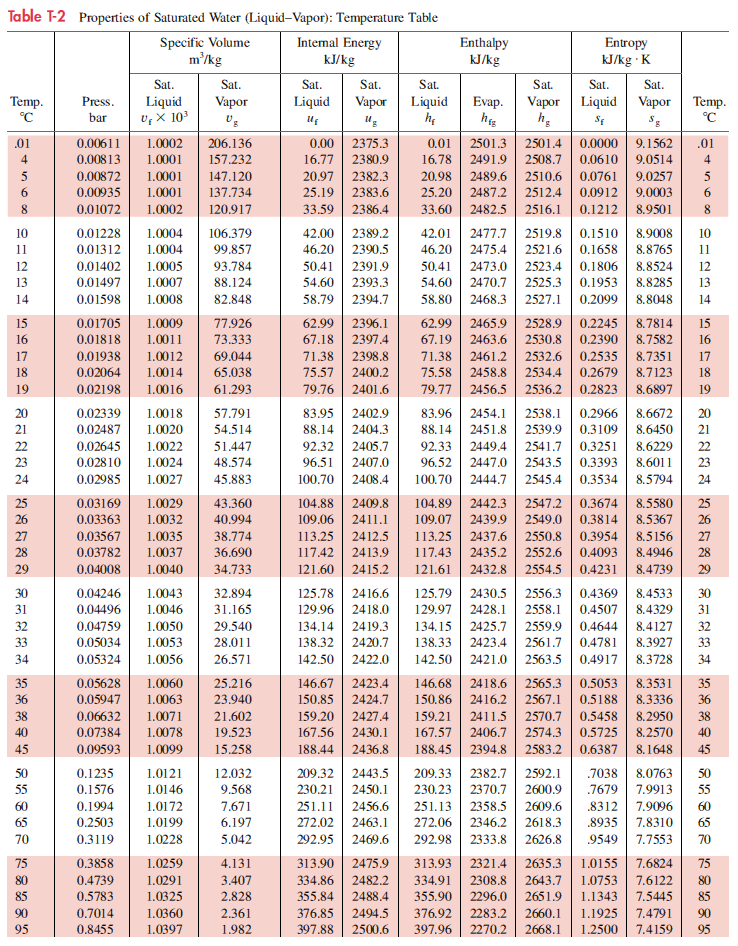

Table T-2 - Properties of Saturated Water (Liquid-Vapor): Temperature Table

International System - Go to thermodynamics tables / Go to top

English System - Go to thermodynamics tables / Go to top

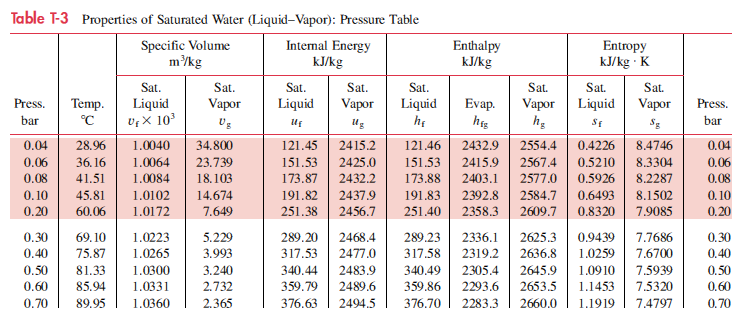

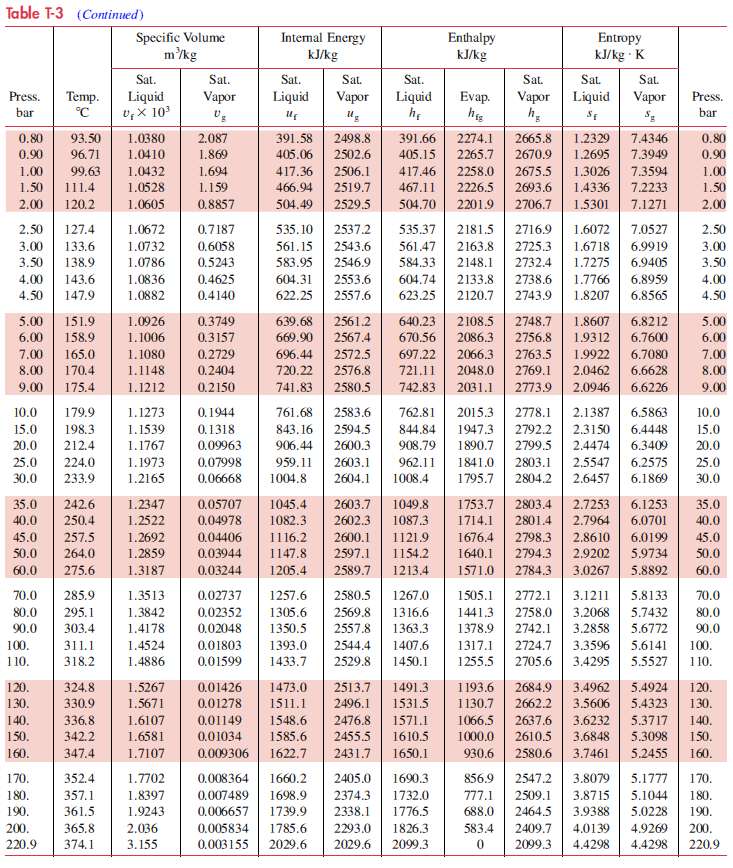

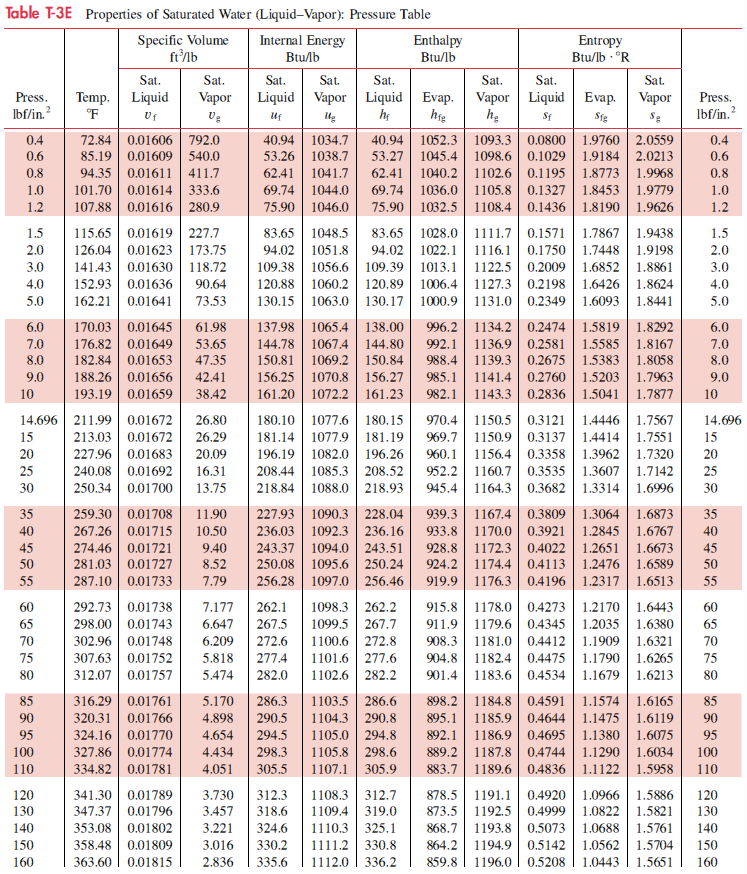

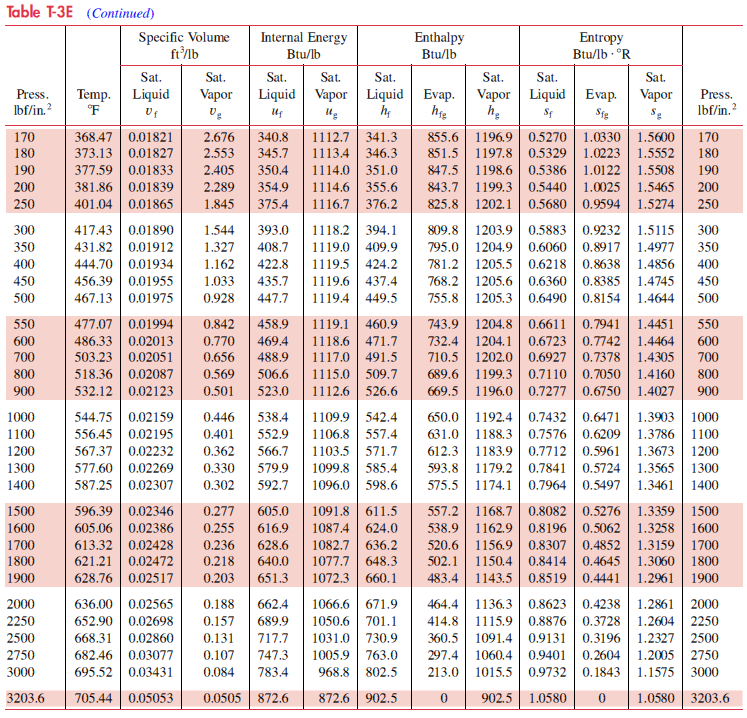

Table T-3 - Properties of Saturated Water (Liquid-Vapor): Pressure

International System - Go to thermodynamics tables / Go to top

English System - Go to thermodynamics tables / Go to top

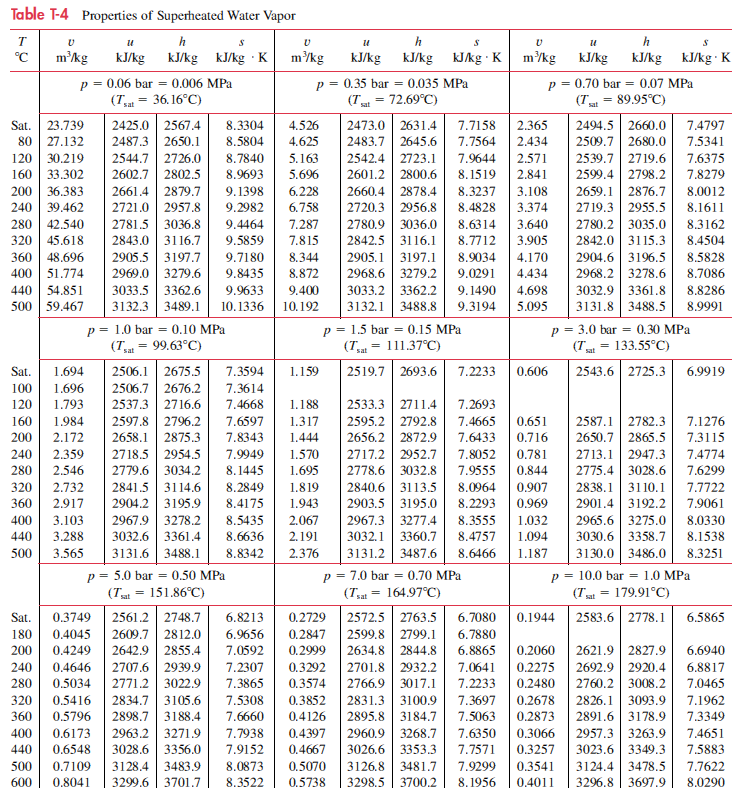

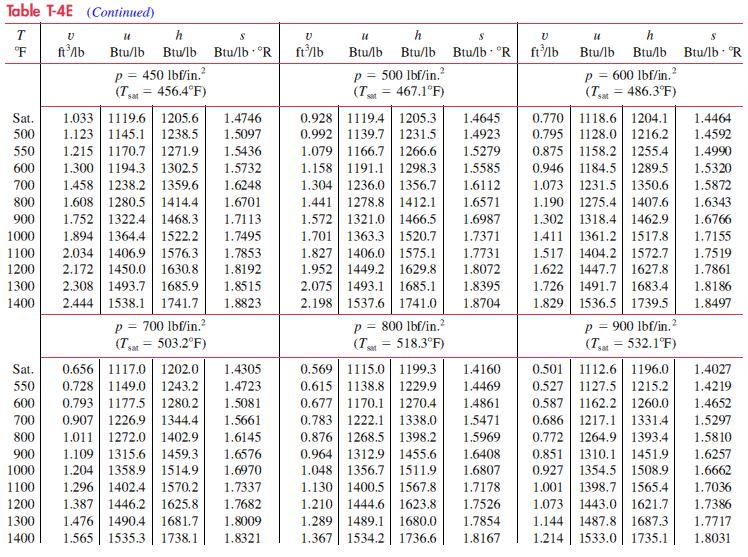

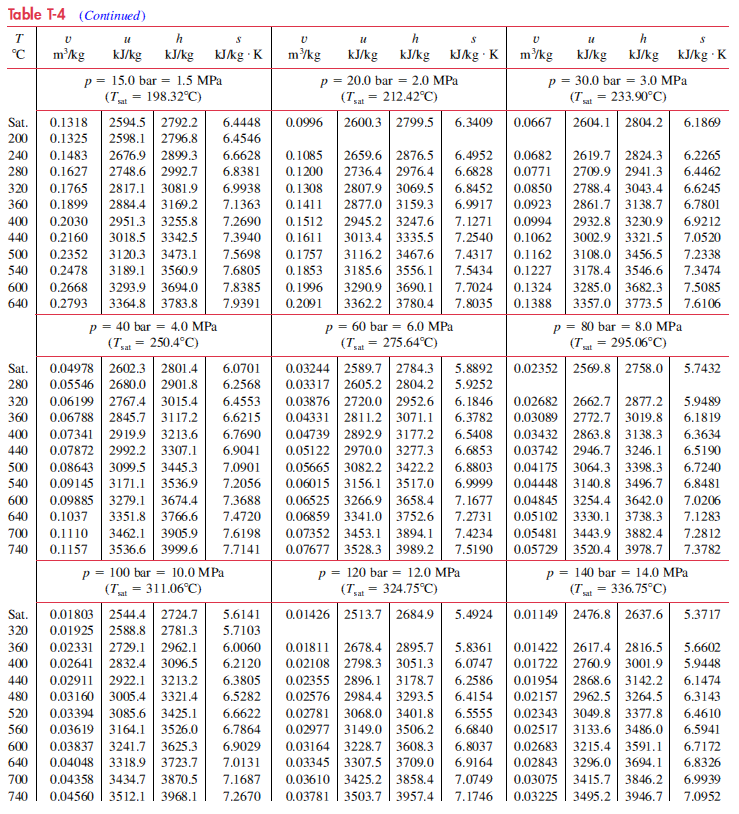

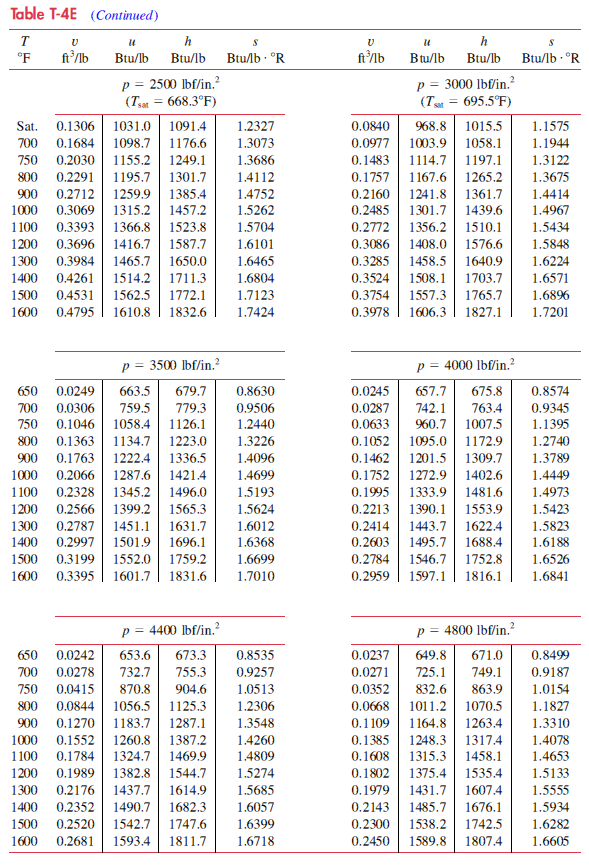

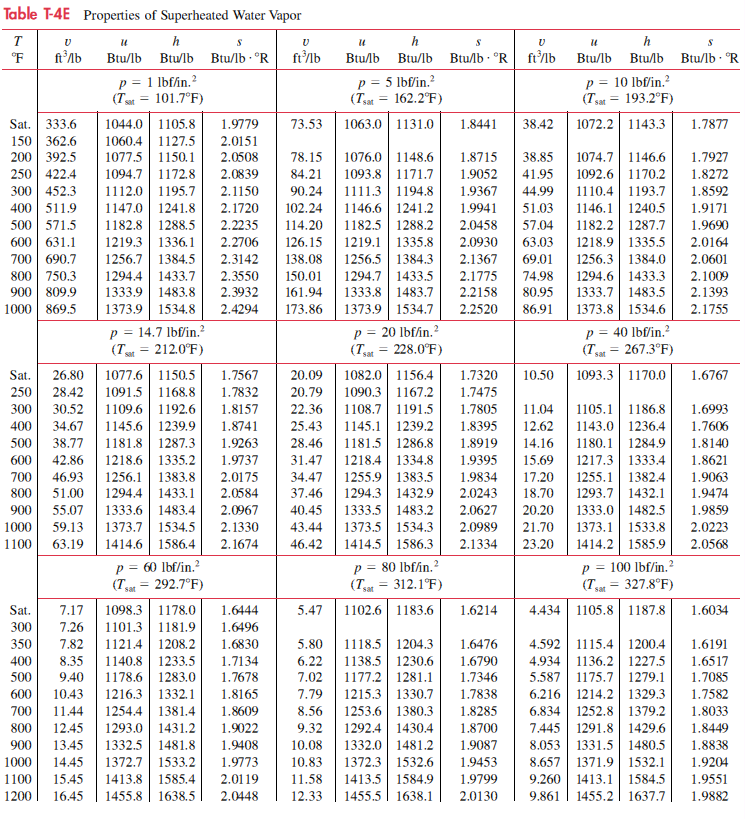

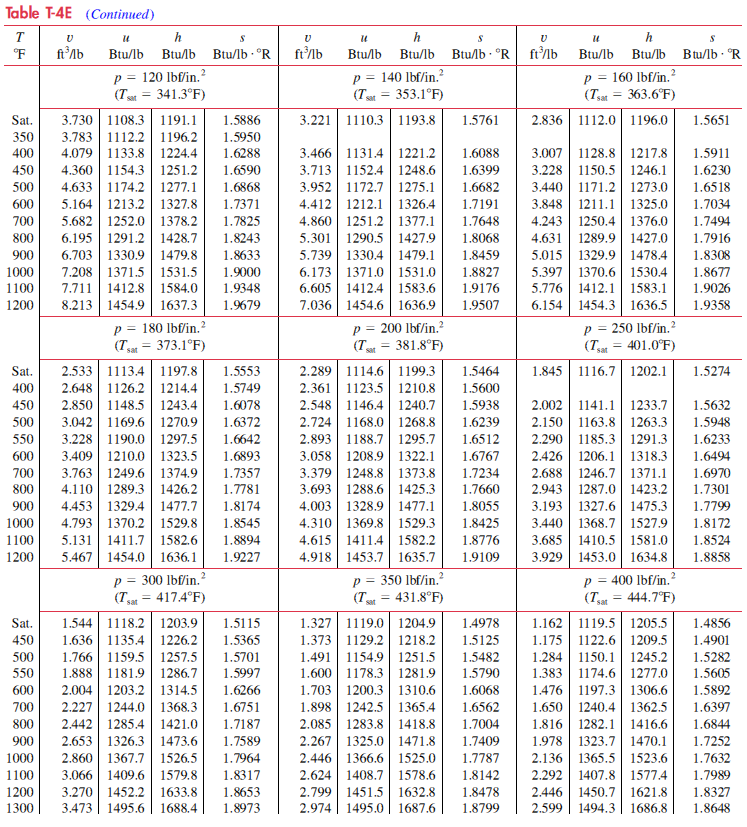

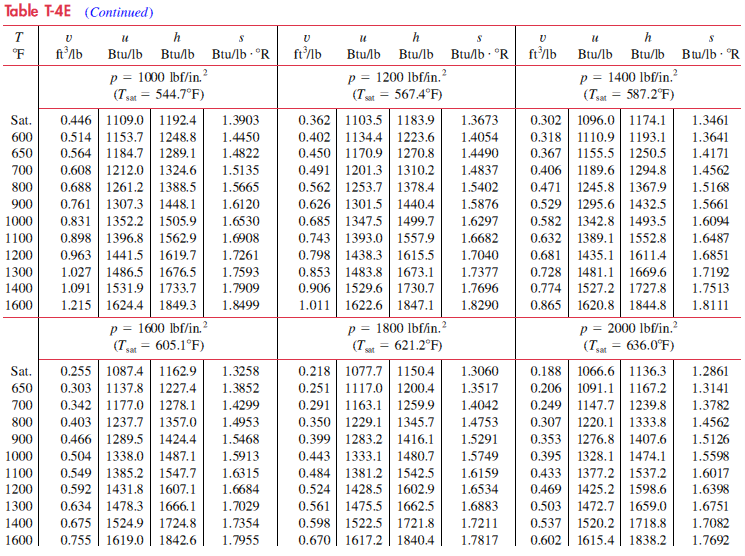

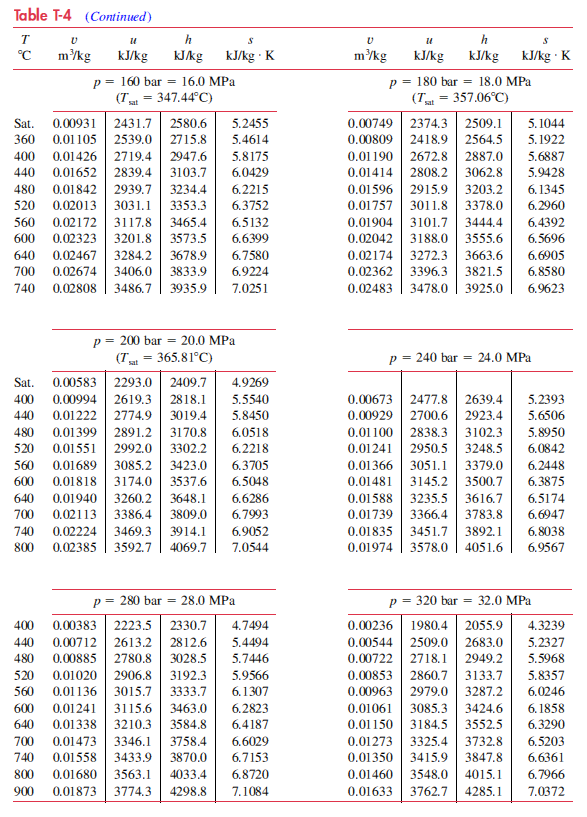

Table T-4 - Properties of Superheated Water Vapor

International System - Go to thermodynamics tables / Go to top

English System - Go to thermodynamics tables / Go to top

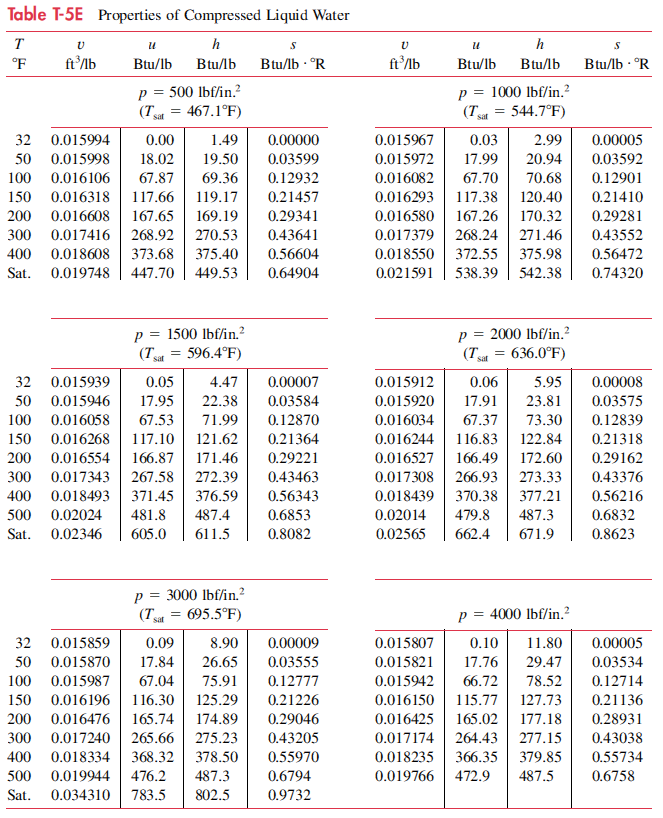

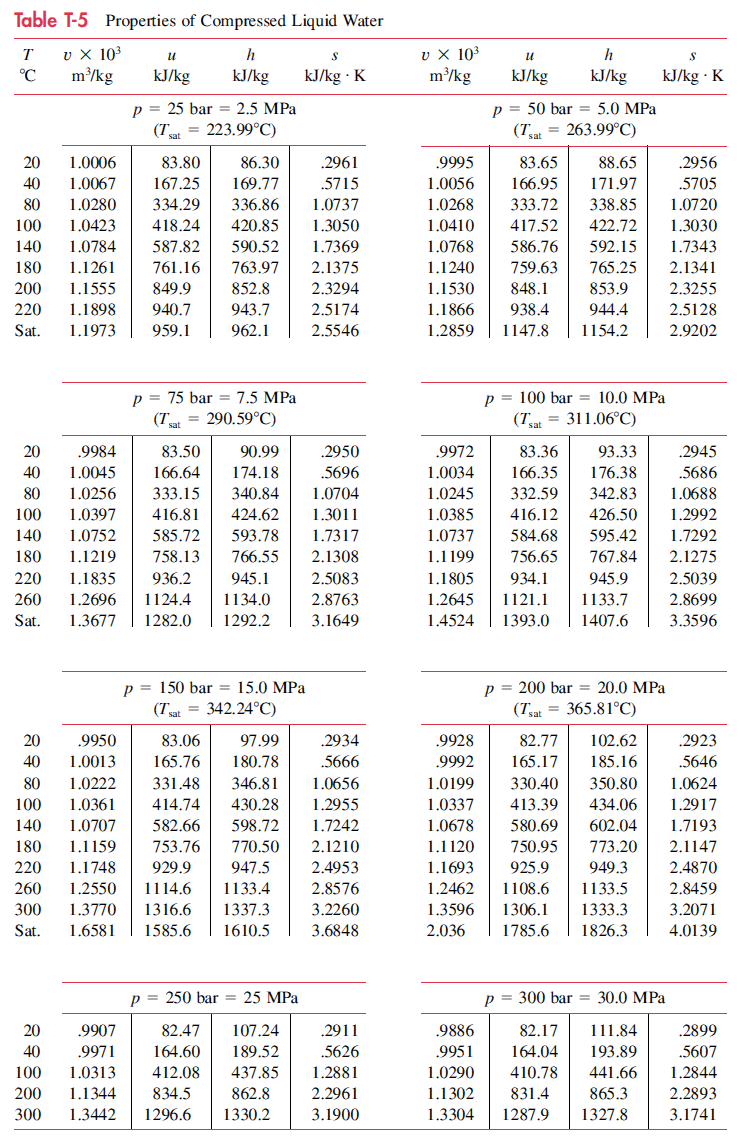

Table T-5 Properties of Compressed Liquid Water

International System - Go to thermodynamics tables / Go to top

English System - Go to thermodynamics tables / Go to top

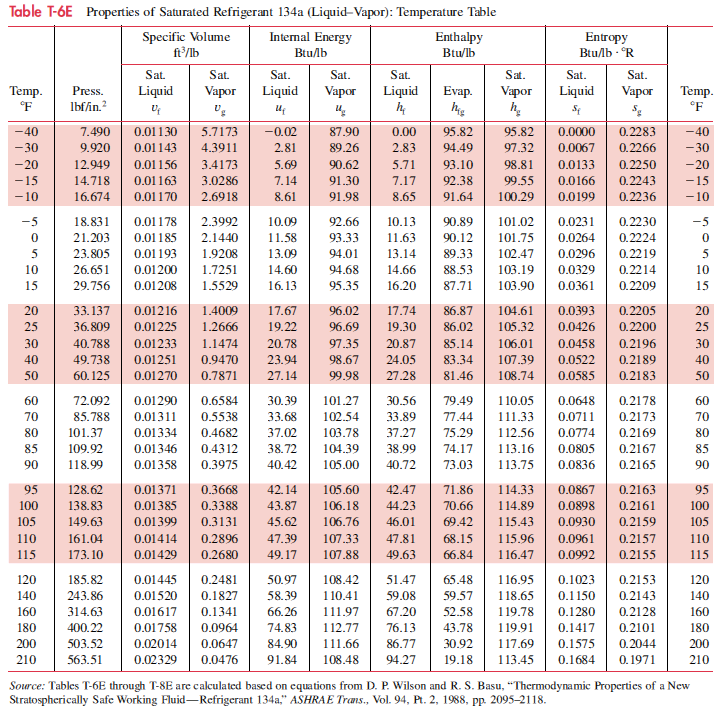

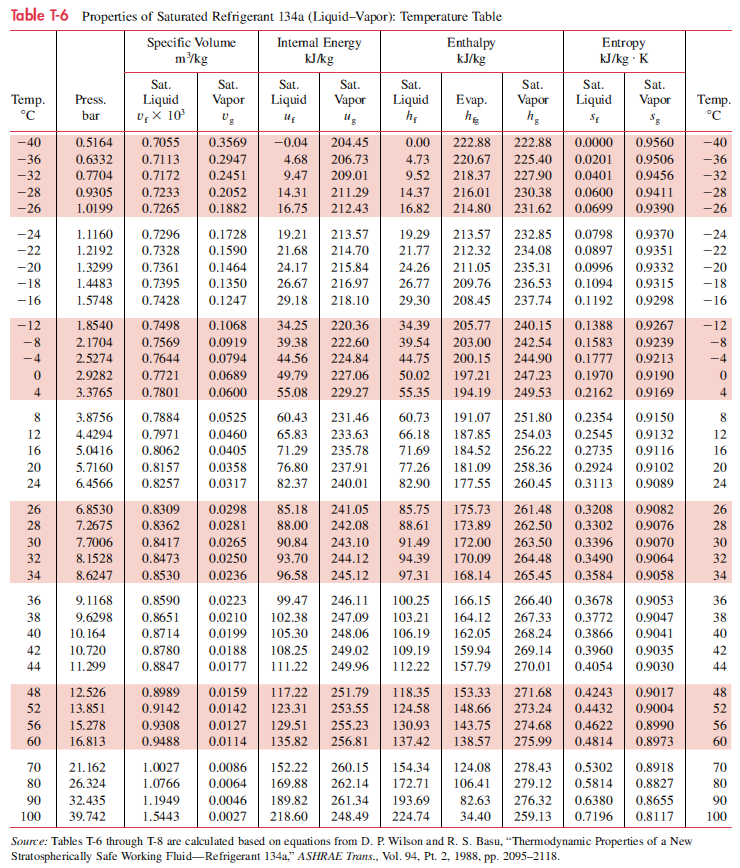

Table T-6 Properties of Saturated Refrigerant 134a (Liquid-Vapor): Temperature Table

International System - Go to thermodynamics tables / Go to top

English System - Go to thermodynamics tables / Go to top

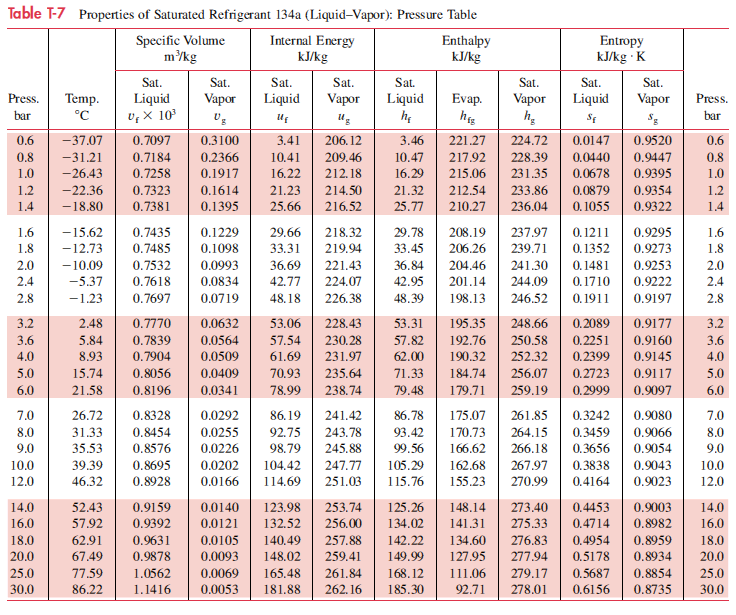

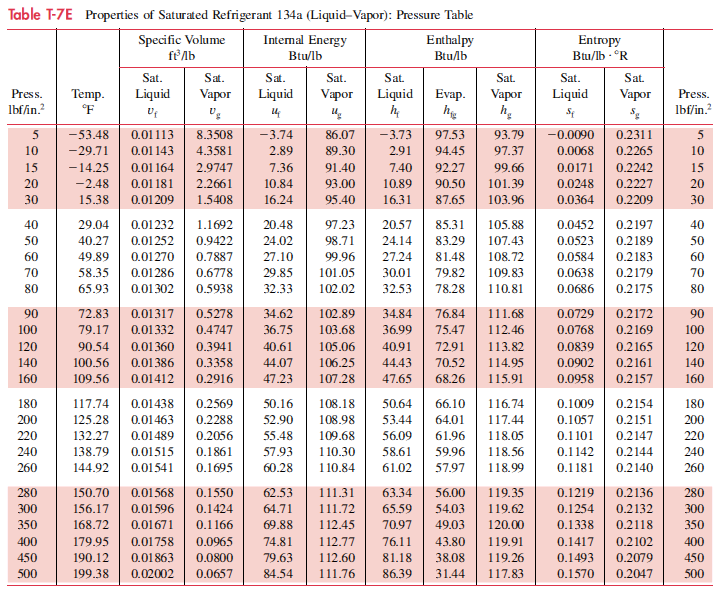

Table T-7 Properties of Saturated Refrigerant 134a (Liquid-Vapor): Pressure Table

International System - Go to thermodynamics tables / Go to top

English System - Go to thermodynamics tables / Go to top

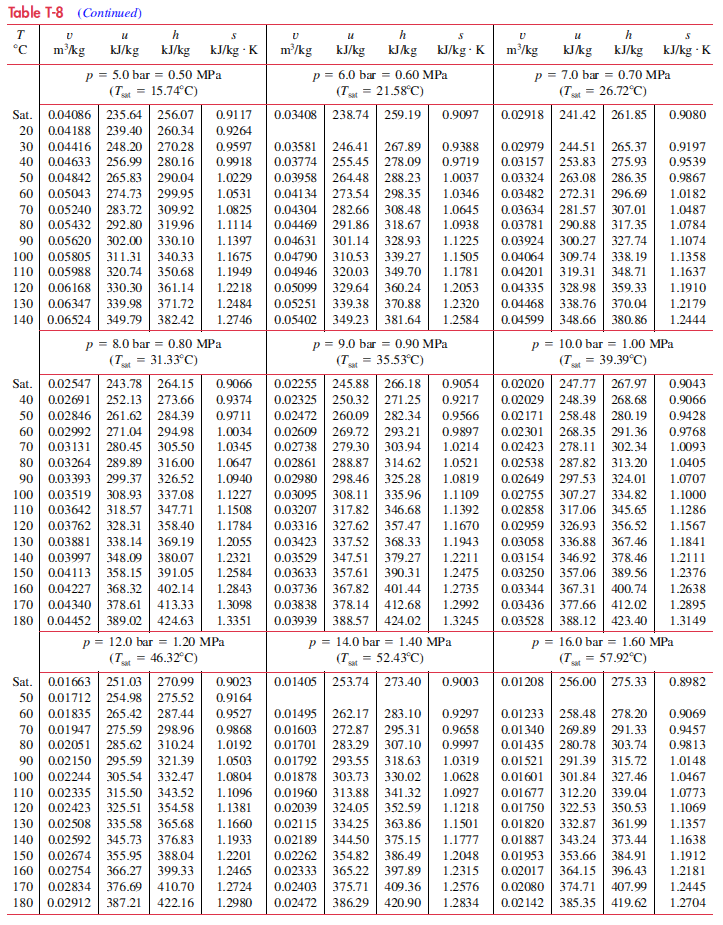

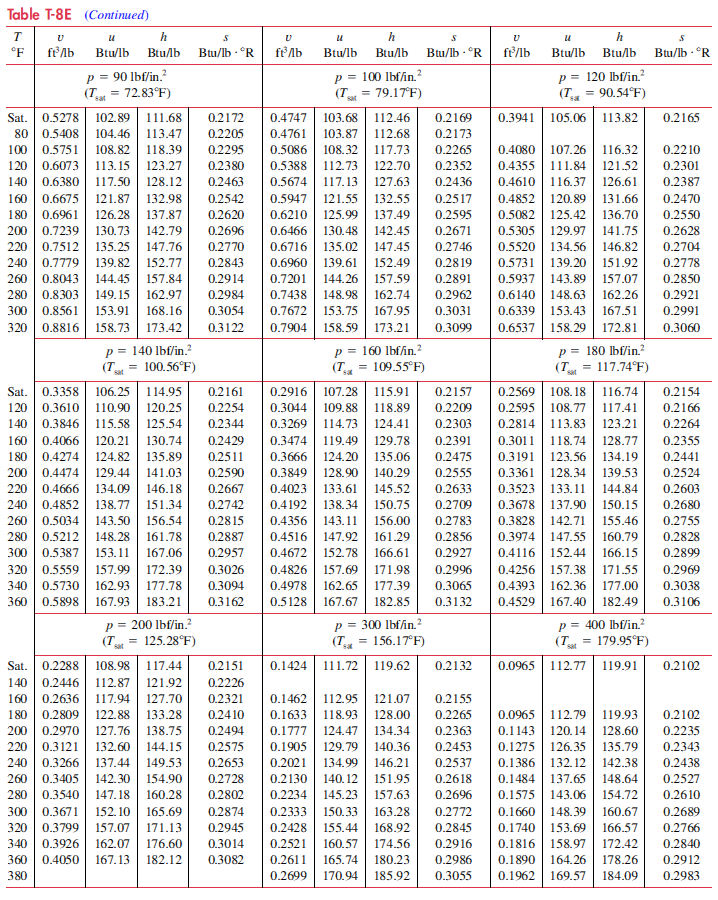

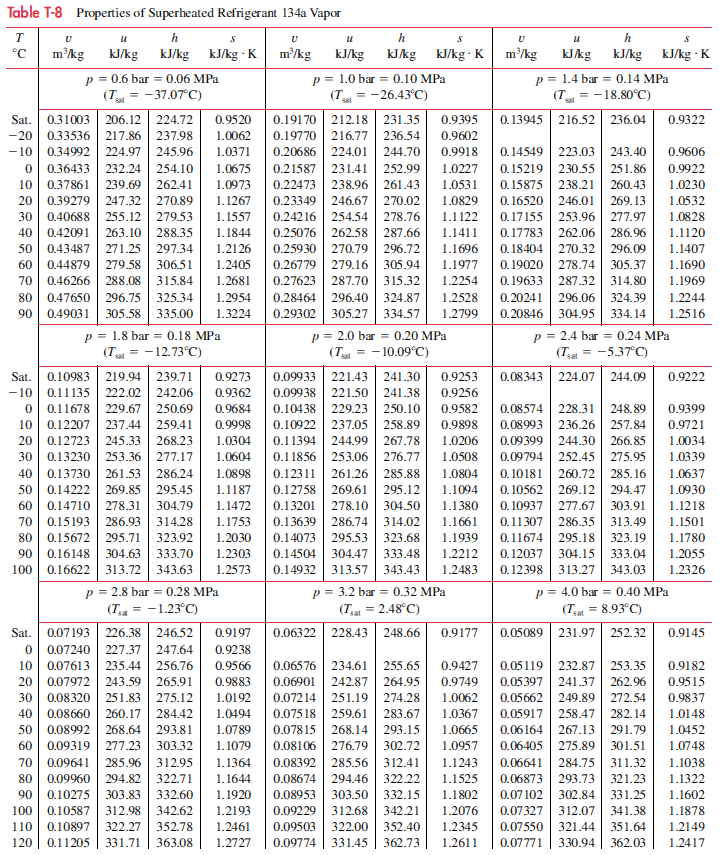

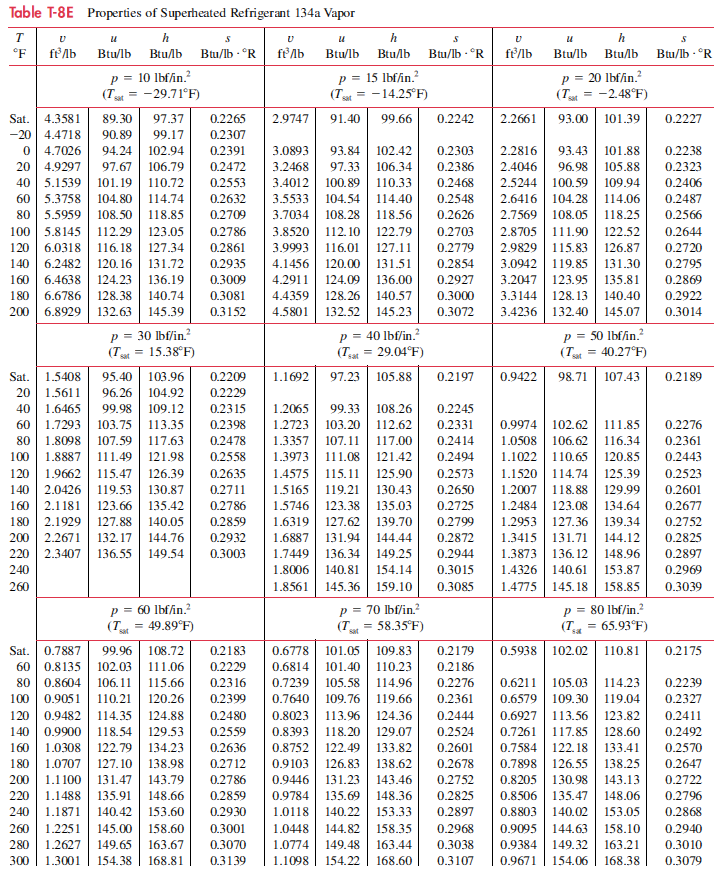

Table T-8 Properties of Superheated Refrigerant 134a Vapor

International System - Go to thermodynamics tables / Go to top

English System - Go to thermodynamics tables / Go to top

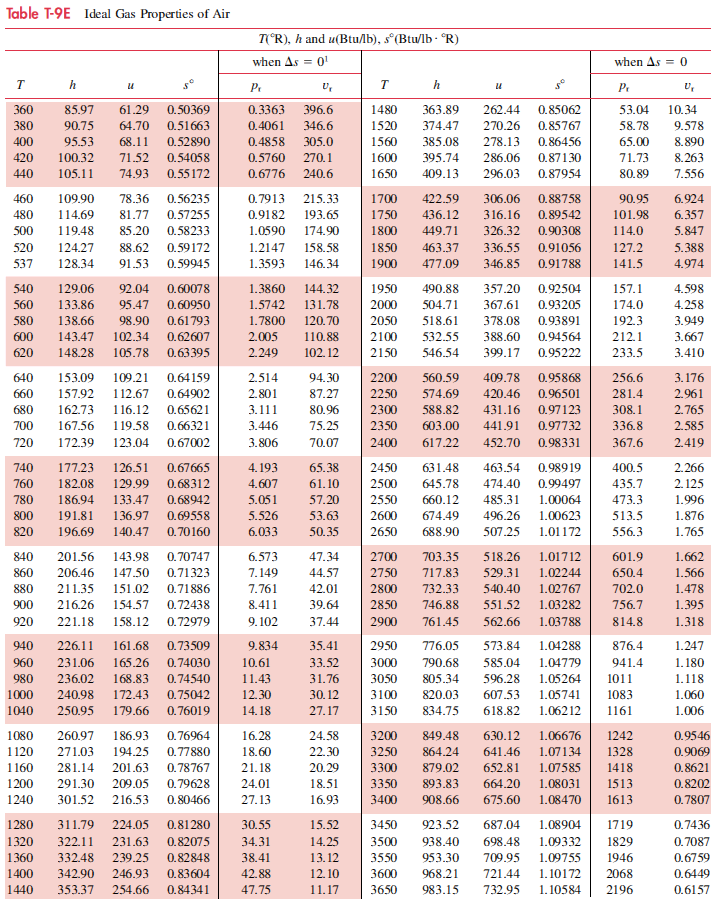

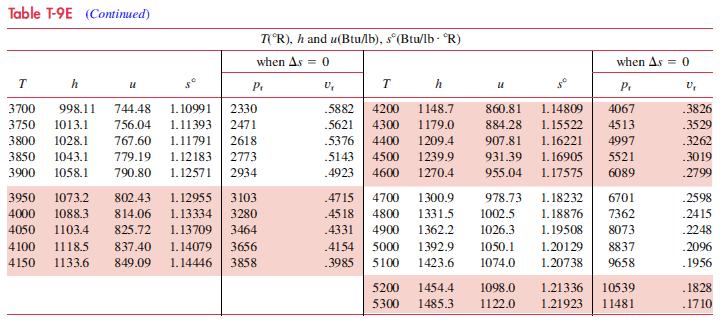

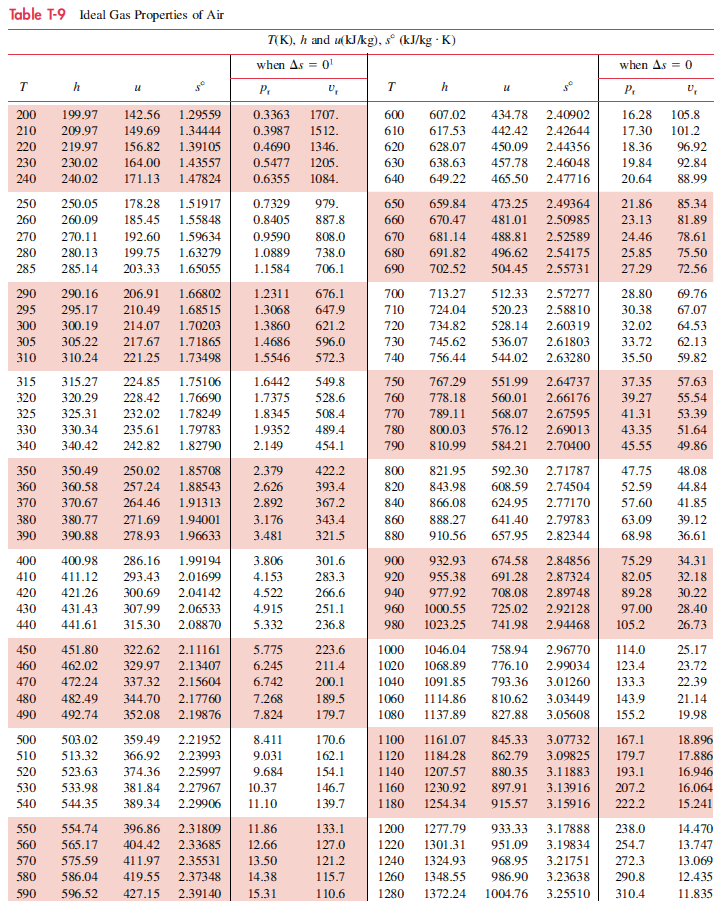

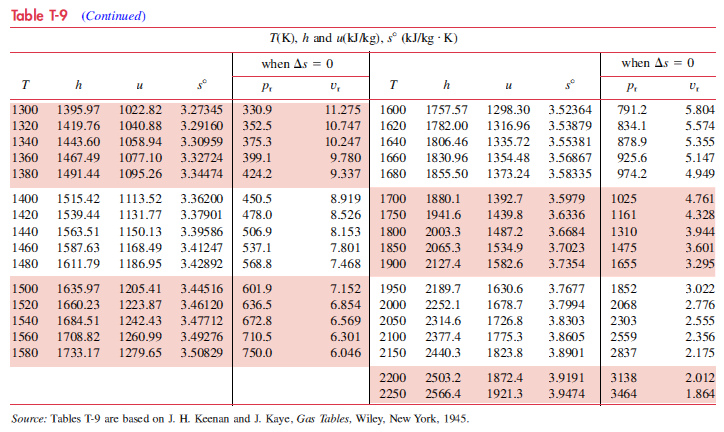

Table T-9 Ideal Gas Properties of Air

International System - Go to thermodynamics tables / Go to top

English System - Go to thermodynamics tables / Go to top

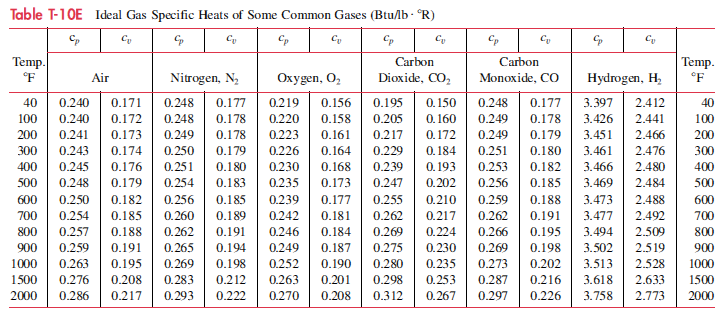

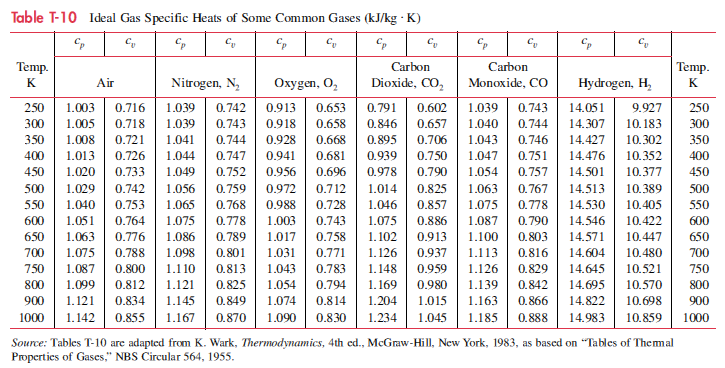

Table T-10 Ideal Gas Specific Heats of Some Common Gases

International System - Go to thermodynamics tables / Go to top

English System - Go to thermodynamics tables / Go to top

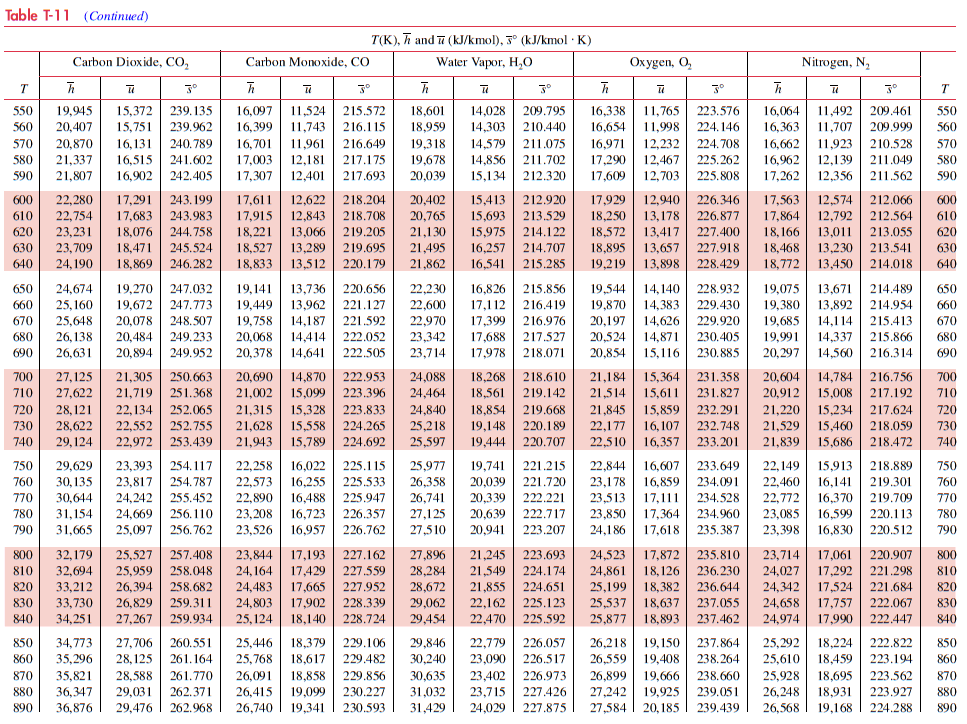

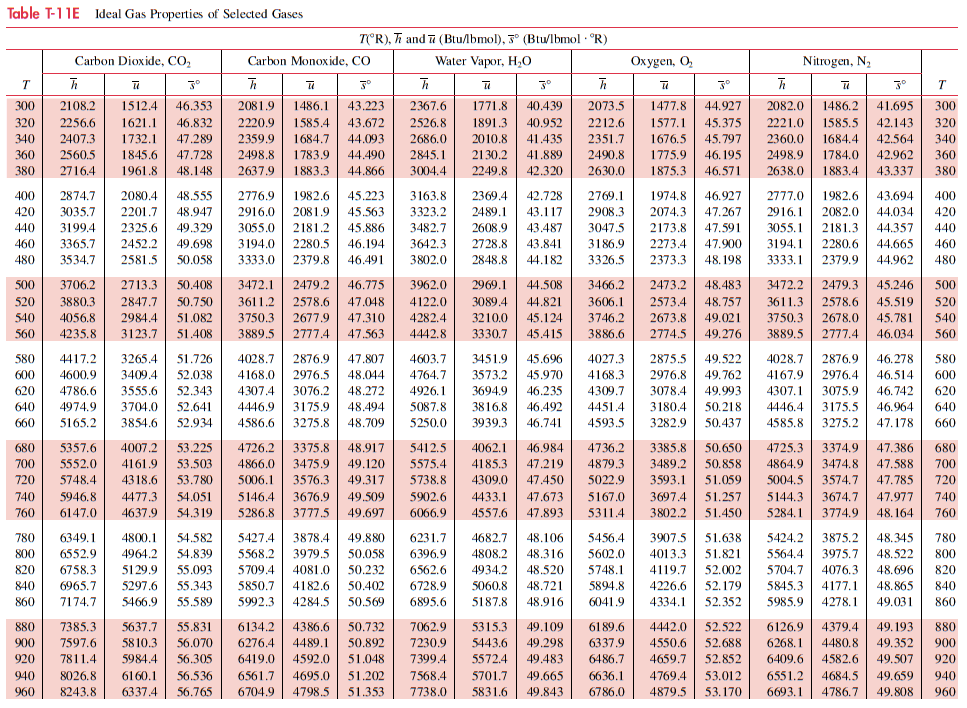

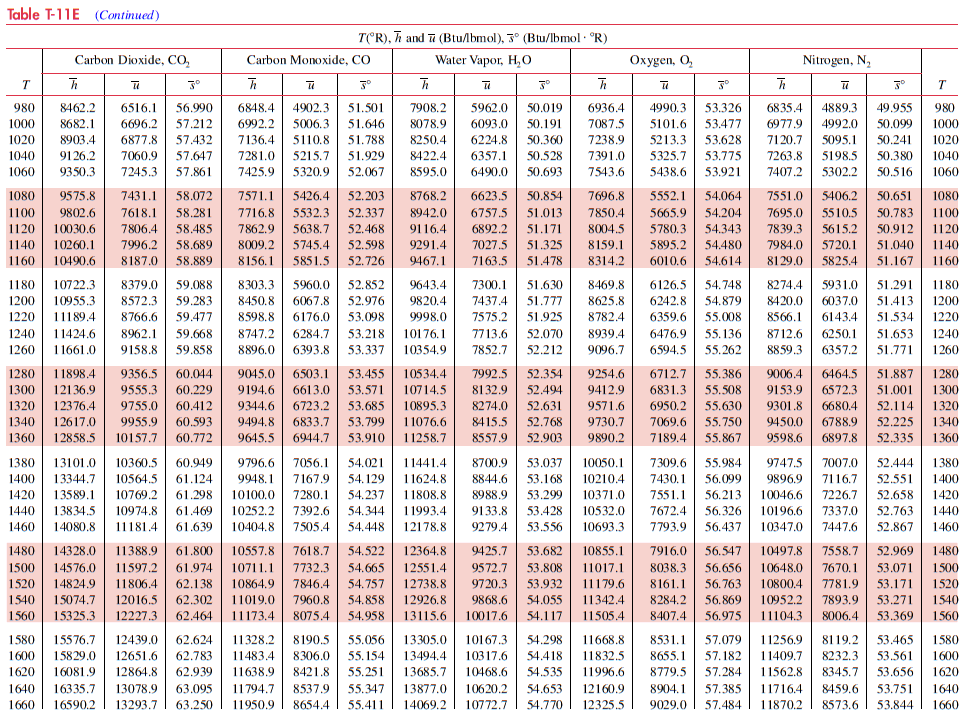

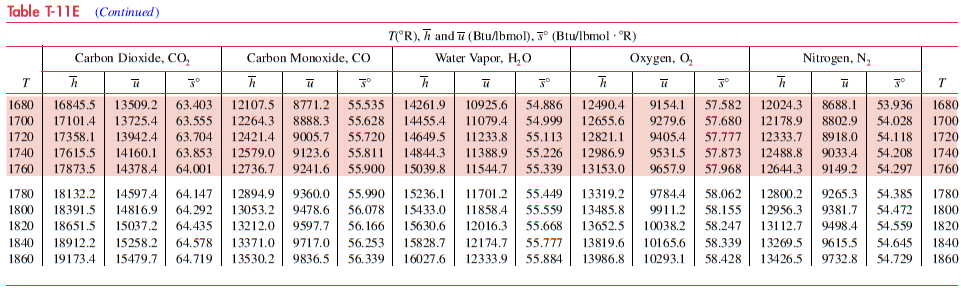

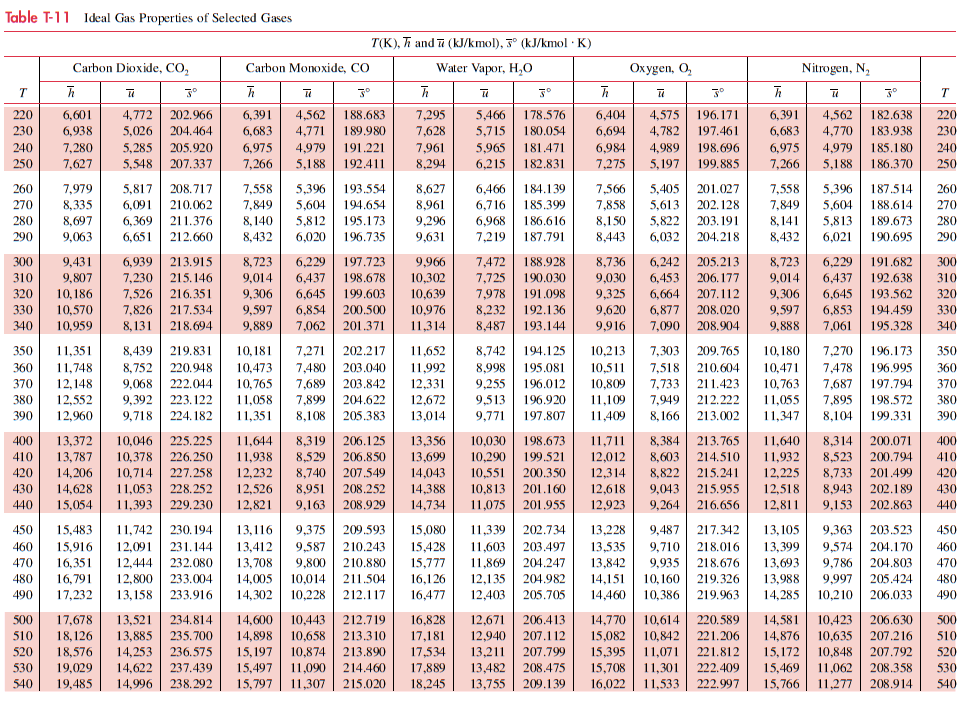

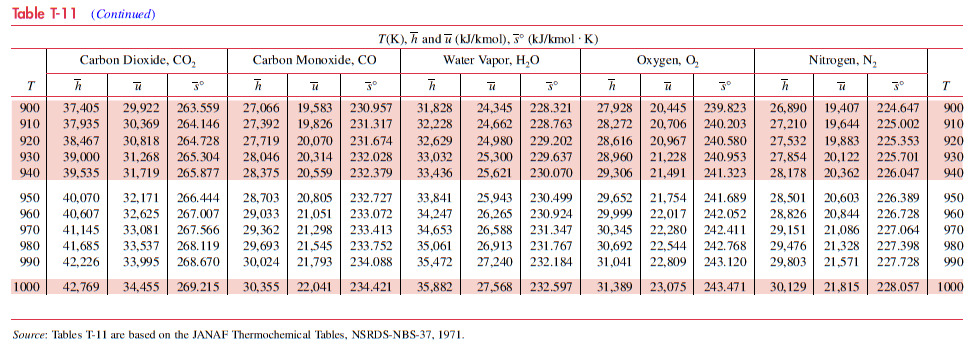

Table T-11 Ideal Gas Properties of Selected Gases

International System - Go to thermodynamics tables / Go to top

English System - Go to thermodynamics tables / Go to top
